Copper Nickel 90/10 Bars and Rods

Mourad Metals, located in Tunis, Tunisia, stands out as a top-notch manufacturer and supplier of high-quality Copper Nickel 90/10 Bars and Rods. These products are known for their exceptional reliability and performance, catering to a wide range of industrial needs. With a reputation built on precision engineering and strict quality standards, Mourad Metals serves industries that demand superior corrosion resistance and durability. Thanks to their cutting-edge manufacturing facilities and unwavering commitment to excellence, every Copper Nickel 90/10 product is crafted to meet international specifications. Clients from marine, chemical, and desalination sectors rely on Mourad Metals for robust, long-lasting metal solutions that blend strength, flexibility, and remarkable resistance to harsh environments.

Cupro Nickel 90/10 Bars Exporter in Sousse, Cupro Nickel 90/10 Square Bar Stockist in Tunis, DIN 2.0872 Hex Bar Supplier in Tunisia, ASME SB111 Cupro Nickel 90/10 Rectangular Rod Distributor in Tunisia, Copper Nickel 90/10 Hex Rod Stockist in Kairouan ,Cupro Nickel 90/10 Square Rod Price in Sousse, Cu-Ni 90/10 Bars in Tunisia, UNS C70600 Forged Bar Manufacturer in Tunis, Cu-Ni 90/10 Polish Flat Bar Supplier in Tunisia, 90/10 CuNi Cold Drawn Round bar Supplier in United kingdom

Copper Nickel 90/10 Cold Drawn Bars

Cu-Ni 90/10 Bright Rods

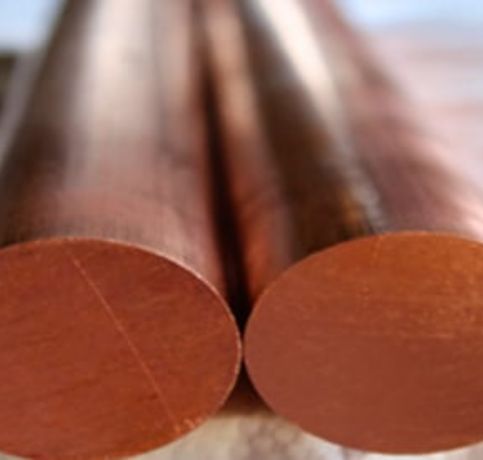

90/10 Cu-Ni Threaded Rods

Copper Nickel 90/10 Bars and Rods are made up of about 90% copper and 10% nickel, often with small amounts of iron and manganese to boost their properties. This alloy is celebrated for its excellent corrosion resistance, especially in seawater and industrial settings, while also maintaining good thermal and electrical conductivity. On the mechanical side, it offers moderate strength, toughness, and ductility, making it ideal for various forming and machining processes. Its ability to resist biofouling and erosion, along with dependable dimensional stability, guarantees durability and a long service life in demanding applications, striking a balance between mechanical performance and environmental resilience.

Cupro Nickel UNS C70600 Bright Bar in Bizerte, ASME SB 111 Cupro Nickel 90/10 Flat Bar Supplier in Tunisia, 90/10 Cu-Ni Flat Bar Price List in Tunis, Stockist of Copper Nickel 90/10 Square Bar in Bizerte, Cu-Ni 90/10 Bars and Rods Exporter in Sfax, Cu-Ni 90/10 Rectangular Bar Exporter in Tunisia, Cu-Ni 90/10 Hot Rolled Round Bar Exporter in Kairouan, Cu-Ni 90/10 Cold Drawn Bars Manufacturer in Sousse, Cu-Ni 90/10 Black Bar Stockists in Tunisia, High Quality Copper Nickel 90/10 Rods Dealer in Sfax

Copper Nickel 90/10 Bars and Rods Specification

Standard	ASTM B111, ASME SB111
Round Bar Size	3mm~ 800mm
Square Bar Size	4mm* 4mm ~100mm* 100mm
Flat Bar Size	2mm ~ 100mm
Hex Bar Size	2mm ~ 100mm
Angle Size	3mm* 20mm* 20mm~ 12mm* 100mm* 100mm
Thickness	50 mm to 6000 mm Long
Length	1 To 6 Meters, Custom Cut Length
Form	Round, Square, Hex(A/F), Rectangle, Billet, Ingot, Forging Etc

Chemical Compositions of Copper Nickel 90/10 Bars and Rods

Grade	Cu	Mn	Pb	Ni	Fe	Zn
Cu-Ni 90-10	88.6 min	1.0 max	.05 max	9-11 max	1.8 max	1 max

Copper Nickel 90/10 Bars and Rods Mechanical Properties

Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
8.89 g/cm3	2260 F	50000 psi	20000 psi	30 %

Copper Nickel 90/10 Bars and Rods Equivalent Grades

STANDARD	WERKSTOFF NR.	UNS
Copper Nickel 90 / 10	2.0872	C70600

You Need Our Support, to Have Any Projects?

Test Certificate

Why Mourad Metals?

Packaging

Copper Nickel 90/10 Bars and Rods Sizes

Metric		US Rods		ASTM/ Canadian		Japanese
Rods Size	Diam. (mm)	Rods Size	Diam. (Inch)	Rods Size	Diam. (mm2)	Rods Size	Diam. (mm)
5	5	#2	0.250	10M	100	6	6
5.5	5.5	#3	0.375	15M	200	10	10
6	6	#4	0.500	20M	300	13	13
7	7	#5	0.600	25M	500	16	16
8	8	#6	0.750	30M	700	19	19
9	9	#7	0.875	35M	1000	22	22
10	10	#8	1.000	45M	1500	25	25
11	11	#9	1.125	55M	2500	29	29
12	12	#10	1.250			32	32
14	14	#11	1.375			35	35
16	16	#12	1.500			38	38
18	18	#13	1.600			41	41
20	20	#14	1.750			44	44
22	22	#15	1.875			48	48
25	25	#16	2.000			51	51
28	28	#18	2.250			57	57
32	32
36	36
40	40
44	44
50	50

Weight Chart of Copper Nickel 90/10 Bars and Rods

Size	Kgs / Foot	Kgs / Mtr	Size	Kgs / Foot	Kgs / Mtr	Size	Kgs / Foot	Kgs / Mtr
3mm	0.017	0.055	20mm	0.753	2.470	3″	10.900	35.762
1/8″	0.019	0.062	22mm	0.908	2.979	3-1/4″	12.800	41.996
5/32″	0.029	0.095	7/8″	0.926	3.038	3-1/2″	14.850	48.772
4mm	0.030	0.098	24mm	1.080	3.543	3-3/4″	17.001	55.780
3/16″	0.043	0.141	25mm	1.180	3.871	4″	19.306	63.340
5mm	0.047	0.154	1″	1.210	3.970	4-1/4″	21.908	72.249
7/32″	0.058	0.190	26mm	1.271	4.170	4-1/2″	24.4487	80.340
6mm	0.068	0.223	27mm	1.368	4.490	4-3/4″	27.366	90.249
1/4″	0.076	0.249	1-1/8″	1.534	5.033	5″	30.461	99.940
7mm	0.091	0.298	30mm	1.691	5.548	5-1/2″	36.690	121.000
5/16″	0.118	0.387	1-1/4″	1.924	6.349	6″	43.860	143.900
8mm	0.120	0.398	32mm	1.894	6.314	6-1/2″	51.093	167.630
9mm	0.152	0.498	1-3/8″	2.303	7.550	7″	59.432	196.000
3/8″	0.170	0.557	35mm	2.390	7.553	7-1/2″	68.226	225.000
10mm	0.189	0.620	36mm	2.438	7.999	8″	77.586	254.55
11mm	0.228	0.748	38mm	2.792	8.903	10″	121.048	397.140
7/16″	0.232	0.761	1-1/2″	2.715	8.951
12mm	0.271	0.889	40mm	3.009	9.872
1/2″	0.303	0.994	1-5/8″	3.200	10.449
13mm	0.318	1.043	1-3/4″	3.712	12.179
14mm	0.368	1.207	45mm	3.807	12.555
9/16″	0.383	1.256	1-7/8″	4.260	13.977
15mm	0.424	1.391	48mm	4.330	14.205
5/8″	0.473	1.551	50mm	4.698	15.414
16mm	0.481	1.578	2″	4.848	15.906
17mm	0.543	1.791	2-1/8″	5.475	17.963
11/16″	0.573	1.880	2-1/4″	6.135	20.128
18mm	0.610	2.001	60mm	6.768	22.205
3/4″	0.682	2.237	2-3/8″	6.838	22.435
			2-1/2″	7.576	24.856
			2-5/8″	8.354	27.409
			2-3/4″	9.169	30.083

Modern Equipments

Expert Engineers

Well Maintained

Efficient Factories

Copper Nickel 90/10 Bars and Rods Types

Cu-Ni DIN 2.0872 Hex Bar Dealer in Tunis, AISI 90/10 Hex Bar Supplier in Bizerte, 90/10 Copper Nickel Hex Bar Manufacturer in Sfax, ASTM B151 90/10 Copper Nickel Forged Rods Supplier in Kairouan, Cupronickel 90/10 Rectangle Bar Size Chart, Copper Nickel 90/10 Solid Rod Price in Sousse, UNS C70600 90/10 Copper Nickel Square Bars and Rods Supplier in Tunisia, ASME SB151 90/10 Cu Ni Half Round Bars Stockist in Sfax, Cupronickel 2.0872 Threaded Bar Supplier in Tunis

Frequently Asked Questions (FAQ)

How Are Copper Nickel 90/10 Bars and Rods Sized?

Copper Nickel 90/10 bars and rods are sized by diameter, length, and cross-sectional dimensions, typically measured in millimeters or inches, conforming to ASTM, ASME, or international standards.

What Are The Considerations For Installing Copper Nickel 90/10 Bars and Rods?

Considerations for installing Copper Nickel 90/10 bars and rods include proper alignment, avoiding contamination, ensuring corrosion resistance in marine environments, and using compatible tools and fittings for secure connections.

Are Copper Nickel 90/10 Bars and Rods Suitable For Hygienic And Sanitary Applications?

Yes, Copper Nickel 90/10 bars and rods are suitable for hygienic and sanitary applications due to their corrosion resistance, antimicrobial properties, and ability to withstand harsh cleaning processes, ensuring cleanliness and durability.

Copper Nickel 90/10 Bars and Rods Uses

These Copper Nickel 90/10 Bars and Rods find extensive use in marine engineering, particularly in shipbuilding, seawater piping, and desalination plants, thanks to their outstanding corrosion resistance. They are also essential in chemical processing equipment, heat exchangers, and condenser tubes, where durability in harsh environments is crucial. Additional applications include offshore platforms, pump shafts, and hydraulic systems that face saline conditions. The alloy’s unique combination of strength, corrosion resistance, and ease of fabrication makes it the perfect choice for industries that need long-lasting, low-maintenance metal components.
