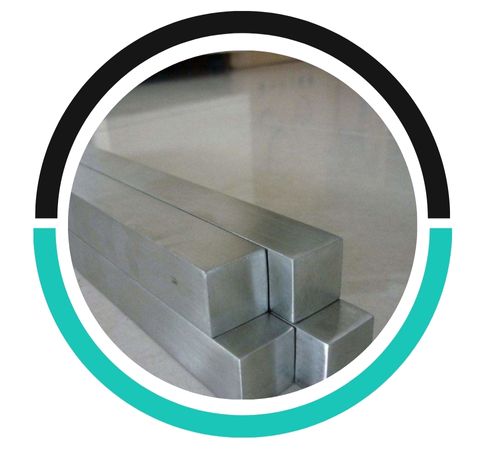

Mourad Metals, located in Tunis, Tunisia, has built a solid reputation as a reliable manufacturer and supplier of high-performance Inconel square bars, specifically designed for tough industrial settings. Thanks to their state-of-the-art production facilities and rigorous quality control measures, the company consistently produces square bars that boast precise dimensions, a superb surface finish, and dependable mechanical integrity. Mourad Metals caters to a variety of global industries, including aerospace, oil and gas, marine, and power generation, providing tailored sizes and grades to fit unique specifications. Their dedication to reliability, technical know-how, and prompt delivery has made Mourad Metals a trusted source for top-notch Inconel square bars around the world.
Inconel square bars are superalloys based on nickel and chromium, often enhanced with elements like iron, molybdenum, niobium, and cobalt to boost their strength and resistance to corrosion. These materials showcase remarkable mechanical properties, such as high tensile and yield strength, excellent creep resistance, and outstanding toughness, even in both high and low-temperature environments. They maintain their structural integrity under extreme heat and pressure while also resisting oxidation, carburization, and stress-corrosion cracking in harsh chemical and thermal conditions.
| Standard | ASME, ASTM, GB, API, DIN, AISI, SUS, EN, UNS |
|---|---|
| Inconel Square Size | 33 x 30mm to 295 x 1066mm |
| Square Bar Surface | Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline |
| Inconel Square Bar Finish | centreless ground, Cold (bright) drawn, smooth turned, hot rolled, slit rolled edge, peeled, Rough Turned, hot rolled annealed, Polish, Bright, Centreless Ground & Black, Grinding |
| Inconel Square Bar Tolerance | H9, H8, H11, H10, H13K9, H12, K11, K10, K12 or as per clients’ requirements |
| Alloy Square bar Condition | Hardened & tempered, annealed |
| Alloy Square Bar Technique | Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod |
| Inconel Square Bars Type | SIZES (mm) | SIZES (Inches) | ISO Tolerance |
|---|---|---|---|
| Alloy Cold Drawn and Polish Square Bars | 3.00 – 75.00 | 1/8″ – 3.00″ | h8-h9-h10-h11 |
| Alloy Cold Drawn and Ground Square Bars | 10.00 – 75.00 | 5/6″ – 2.50″ | h8-h9-h10-h11 |
| Peeled and Polished Square Bars | 40.00 – 150.00 | 1.50″ – 6.00″ | h11, h11-DIN 1013 |
| Inconel Peeled and Square Bars | 20.00 – 50.00 | 3/4″ – 2.00″ | h9-h10-h11 |
| Size | Kgs / Foot | Kgs / Mtr | Size | Kgs / Foot | Kgs / Mtr | Size | Kgs / Foot | Kgs / Mtr |
|---|---|---|---|---|---|---|---|---|
| 3mm | 0.017 | 0.055 | 20mm | 0.753 | 2.470 | 3″ | 10.900 | 35.762 |
| 1/8″ | 0.019 | 0.062 | 22mm | 0.908 | 2.979 | 3-1/4″ | 12.800 | 41.996 |
| 5/32″ | 0.029 | 0.095 | 7/8″ | 0.926 | 3.038 | 3-1/2″ | 14.850 | 48.772 |
| 4mm | 0.030 | 0.098 | 24mm | 1.080 | 3.543 | 3-3/4″ | 17.001 | 55.780 |
| 3/16″ | 0.043 | 0.141 | 25mm | 1.180 | 3.871 | 4″ | 19.306 | 63.340 |
| 5mm | 0.047 | 0.154 | 1″ | 1.210 | 3.970 | 4-1/4″ | 21.908 | 72.249 |
| 7/32″ | 0.058 | 0.190 | 26mm | 1.271 | 4.170 | 4-1/2″ | 24.4487 | 80.340 |
| 6mm | 0.068 | 0.223 | 27mm | 1.368 | 4.490 | 4-3/4″ | 27.366 | 90.249 |
| 1/4″ | 0.076 | 0.249 | 1-1/8″ | 1.534 | 5.033 | 5″ | 30.461 | 99.940 |
| 7mm | 0.091 | 0.298 | 30mm | 1.691 | 5.548 | 5-1/2″ | 36.690 | 121.000 |
| 5/16″ | 0.118 | 0.387 | 1-1/4″ | 1.924 | 6.349 | 6″ | 43.860 | 143.900 |
| 8mm | 0.120 | 0.398 | 32mm | 1.894 | 6.314 | 6-1/2″ | 51.093 | 167.630 |
| 9mm | 0.152 | 0.498 | 1-3/8″ | 2.303 | 7.550 | 7″ | 59.432 | 196.000 |
| 3/8″ | 0.170 | 0.557 | 35mm | 2.390 | 7.553 | 7-1/2″ | 68.226 | 225.000 |
| 10mm | 0.189 | 0.620 | 36mm | 2.438 | 7.999 | 8″ | 77.586 | 254.55 |
| 11mm | 0.228 | 0.748 | 38mm | 2.792 | 8.903 | 10″ | 121.048 | 397.140 |
| 7/16″ | 0.232 | 0.761 | 1-1/2″ | 2.715 | 8.951 | |||
| 12mm | 0.271 | 0.889 | 40mm | 3.009 | 9.872 | |||
| 1/2″ | 0.303 | 0.994 | 1-5/8″ | 3.200 | 10.449 | |||
| 13mm | 0.318 | 1.043 | 1-3/4″ | 3.712 | 12.179 | |||
| 14mm | 0.368 | 1.207 | 45mm | 3.807 | 12.555 | |||
| 9/16″ | 0.383 | 1.256 | 1-7/8″ | 4.260 | 13.977 | |||
| 15mm | 0.424 | 1.391 | 48mm | 4.330 | 14.205 | |||
| 5/8″ | 0.473 | 1.551 | 50mm | 4.698 | 15.414 | |||
| 16mm | 0.481 | 1.578 | 2″ | 4.848 | 15.906 | |||
| 17mm | 0.543 | 1.791 | 2-1/8″ | 5.475 | 17.963 | |||
| 11/16″ | 0.573 | 1.880 | 2-1/4″ | 6.135 | 20.128 | |||
| 18mm | 0.610 | 2.001 | 60mm | 6.768 | 22.205 | |||
| 3/4″ | 0.682 | 2.237 | 2-3/8″ | 6.838 | 22.435 | |||
| 2-1/2″ | 7.576 | 24.856 | ||||||
| 2-5/8″ | 8.354 | 27.409 | ||||||
| 2-3/4″ | 9.169 | 30.083 |
| Ni | Cr | Fe | Mo | Nb+Ta | C | Mn | Si | Ph | S | Al | Ti | Co | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Min | Bal | 20 | – | 8 | 3.15 | – | – | – | – | – | – | – | – |
| Max | – | 23 | 5 | 10 | 4.15 | 0.10 | 0.50 | 0.50 | 0.015 | 0.015 | 0.40 | 0.40 | 1.0 |
| 0.2% Proof Stress | Tensile Strength | Elongation | Reduction of area | Hardness |
|---|---|---|---|---|
| MPA | MPA | % | % | HRB |
| Min | Min | Min | Min | Min |
| 414 | 827 | 30 | 40 | 145 |
Inconel Square Bar is widely used in industries such as aerospace, chemical processing, power generation, and marine. It is ideal for components exposed to high temperatures and corrosive environments, including turbines, heat exchangers, and exhaust systems.
Yes, we provide bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@mouradmetals.com
These Inconel square bars find their way into various applications where high strength and resilience to extreme conditions are crucial. They’re frequently used in aerospace components like turbine frames, fasteners, and structural supports that face high temperatures. In the oil and gas sector, you’ll find them in downhole tools, valves, and fittings that operate in corrosive and high-pressure environments. Other uses include power generation equipment, heat exchangers, marine hardware, and chemical processing systems that demand long-lasting performance and exceptional reliability.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Mourad Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Tunis, Tunisia
