Mourad Metals is a top-notch manufacturer and supplier located in Tunis, Tunisia, specializing in high-quality Stainless Steel 317L Square Bars and Rods for a variety of industrial uses. With state-of-the-art production facilities and rigorous quality control processes, Mourad Metals guarantees products that align with international standards and meet client needs. Known for their outstanding corrosion resistance—especially in chloride and acidic environments—these Stainless Steel 317L Square Bars and Rods also boast impressive durability and precise dimensions. By prioritizing accuracy, timely deliveries, and customer satisfaction, Mourad Metals has earned a reputation as a reliable supplier of stainless steel products in both local and global markets.

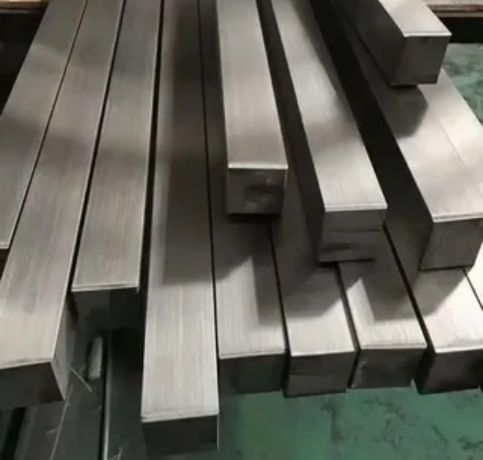

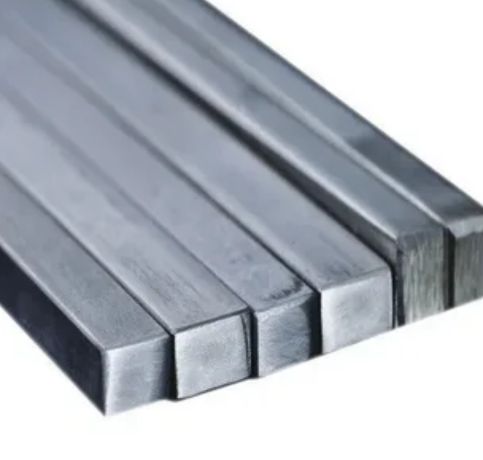

Stainless Steel 317L Square Bars and Rods are austenitic stainless steels characterized by high levels of chromium, nickel, and molybdenum, along with a low carbon content that enhances weldability and minimizes sensitization. This unique composition grants them remarkable resistance to pitting, crevice corrosion, and stress corrosion cracking. On the mechanical side, these bars and rods provide solid tensile strength, high ductility, and toughness. They maintain their structural integrity even when exposed to corrosive environments and moderate temperatures, while also offering excellent weldability and formability for challenging industrial applications.
Stainless Steel 317L Square Bars Specification :
Dimensions : ASTM, ASME
Standard : ASTM / ASME SA A582, A276, A564, ASTM A484, 484M
Surface : hrap, hot rolled pickled or sand blasting finished, cold drawn, polished, hairline
Size : Tolerance: H8, H9, H10, H11, H12, H13K9, K10, K11, K12
| Element | C | Cr | Mn | Ni | P | S | Si |
| SS 317 | 0.03 max. | 18.0 – 20.0 | 2.00 max. | 11.0 – 15.0 | 0.045 max. | 0.03 max. | 0.75 max. |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi ” 75000, MPa ” 515 | Psi ” 30000, MPa ” 205 | 35 % |
| STANDARD | WERKSTOFF NR. | UNS |
| SS 317 | 1.4438 | S31703 |
| SQUARES | ||
|---|---|---|
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
| 16 | 0.62 | 2.05 |
| 18 | 0.79 | 2.59 |
| 20 | 0.76 | 2.49 |
| 22 | 1.18 | 3.87 |
| 25 | 1.52 | 5.00 |
| 28 | 1.91 | 6.27 |
| 30 | 2.19 | 7.20 |
| 32 | 2.50 | 8.19 |
| 36 | 3.16 | 10.37 |
| 38 | 3.52 | 11.55 |
| 40 | 3.90 | 12.80 |
| 45 | 4.94 | 16.20 |
| 50 | 6.10 | 20.00 |
| 56 | 7.65 | 25.08 |
| 60 | – | – |
| 65 | – | – |
| 70 | – | – |
| 75 | – | – |
| 80 | – | – |
| 90 | – | – |
| 100 | – | – |
Yes, Stainless Steel 317L square bars and rods can be recycled after use. They retain their properties and can be repurposed for new applications, making them highly sustainable.
To ensure the quality of Stainless Steel 317L square rods, source them from reputable suppliers and conduct material tests such as chemical composition and mechanical properties. Additionally, check for compliance with relevant industry standards and certifications.
Yes, Stainless Steel 317L square bars can be used for underground applications due to their excellent corrosion resistance, particularly in environments with high moisture or chloride exposure. Their durability ensures long-lasting performance in such conditions.
Stainless Steel 317L Square Bars and Rods find extensive use in settings that demand exceptional corrosion resistance and durability. They are commonly utilized in chemical processing equipment, pharmaceutical machinery, marine components, and oil and gas systems. Additionally, you’ll find them in desalination plants, petrochemical facilities, and heat exchangers. Thanks to their low carbon content and outstanding resistance to harsh environments, these stainless steel products are a go-to choice for many demanding applications.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
