Mourad Metals is a trusted manufacturer and supplier of Titanium Grade 3 Bars and Rods, proudly based in Tunis, Tunisia. The company is dedicated to crafting top-notch titanium products that meet international standards and cater to a variety of industrial needs. With state-of-the-art manufacturing facilities and rigorous quality control measures, Mourad Metals ensures that its Titanium Grade 3 Bars and Rods are recognized for their consistent quality, outstanding corrosion resistance, and reliable performance. Thanks to its strong technical know-how, customer-centric approach, and efficient logistics, Mourad Metals has become a go-to supplier for both local and global markets.
Titanium Grade 3 Bars and Rods are made from commercially pure titanium with a moderate oxygen content, striking a perfect balance between strength and ductility. This grade offers superior strength compared to Grades 1 and 2 while still allowing for good formability and weldability. Typical mechanical properties include a tensile strength of about 450 MPa, a yield strength close to 380 MPa, and an elongation of roughly 18%. Additionally, Titanium Grade 3 showcases excellent corrosion resistance in marine, chemical, and industrial settings.
| Standards : | ASTM B348, B863 / ASME SB348, SB863 |
| Dimensions : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Wire : | Thickness starting from 0.05mm |
| Round bar size : | Diameter: 3-~800mm |
| Hex Bar size : | 2-100mm A/F |
| Flat bar size : | Thickness: 2 -100mm / Width: 10 to 500mm |
| Square bar size : | 4 to 100mm |
| Rectangular Bars Size : | 33 x 30mm to 295 x 1066mm |
| Hollow Bar : | 32mm OD x 16mm ID to 250mm OD x 200mm ID |
| Tolerance : | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr 3 | 3.7055 | R50550 |
| Grade | C | N | O | H | Ti | Fe |
| Titanium Grade 3 | 0..08 max | 0.05 max | 0.35 max | 0.015 max | Bal | 0.30 max |
| Tensile Strength | Reduction of area | Elongation | Hardness |
| 450 | 30 | 18 % | 90 |
| Density | 0.163 lbs/in³ ,(4.51 g/cm³) |
| Mean Coefficient of Thermal Expansion | in/in/°F (mm/m/°C): 70- 212°F (20- 100°C) 4.78 x 10-6(8.6) |
| Thermal Conductivity | BTU-in/h-ft-°F (W/m-°K): At 70°F (21°C): 138 (19.9) |
| Modulus of Elasticity, ksi (MPa) | 15.2 x 10³ (105 x 10³) in tension |
| Melting Point | 3020°F (1660°C) |
| Type | SIZES (mm) | SIZES (Inches) | ISO Tolerance |
|---|---|---|---|
| Cold Drawn and Ground | 10.00 – 75.00 | 5/6″ – 2.50″ | h8-h9-h10-h11 |
| Peeled and Polished | 40.00 – 150.00 | 1.50″ – 6.00″ | h11, h11-DIN 1013 |
| Peeled and Ground | 20.00 – 50.00 | 3/4″ – 2.00″ | h9-h10-h11 |
| Cold Drawn and Polish | 3.00 – 75.00 | 1/8″ – 3.00″ | h8-h9-h10-h11 |

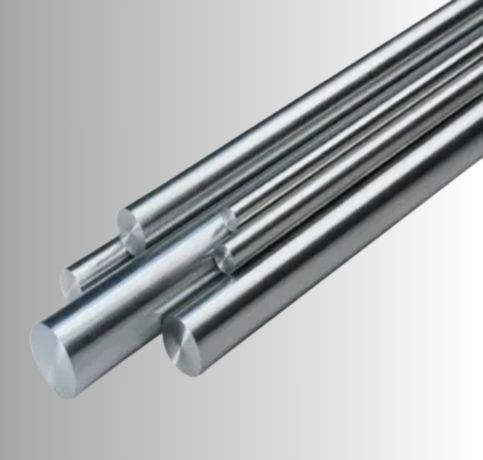

Titanium Grade 3 Round Bars Bars Standard lengths of 2000 mm up to 6000 mm. Cut to size on request (tolerance +2/-0 mm).
| 5.0 | 45.0 |
| 6.0 | 50.0 |
| 7.0 | 55.0 |
| 8.0 | 60.0 |
| 9.0 | 65.0 |
| 10.0 | 70.0 |
| 12.0 | 75.0 |
| 16.0 | 80.0 |
| 20.0 | 90.0 |
| 25.0 | 100.0 |
| 30.0 | 130.0 |
| 35.0 | 160.0 |
| 40.0 | 200.0 |
Yes, Titanium Grade 3 has excellent corrosion resistance in aggressive environments like seawater, chemicals, and high-temperature settings, making it ideal for marine and chemical processing industries.
Yes, Titanium Grade 3 has good weldability, making it suitable for various applications where welding is required.
Yes, we provide bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@mouradmetals.com
These Titanium Grade 3 Bars and Rods are often used in applications that require moderate strength, good formability, and high corrosion resistance. They’re commonly found in chemical processing equipment, heat exchangers, condensers, and marine components. The material is also ideal for aerospace structures, power generation equipment, and industrial fabrication. Plus, Titanium Grade 3 is perfect for applications where durability, lightweight properties, and a long service life are crucial, especially in environments that face corrosive media.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
