Mourad Metals is a trusted manufacturer and supplier of Titanium Grade 7 Bars and Rods, based in Tunis, Tunisia. The company has built a solid reputation for providing top-notch titanium products that adhere to international standards and cater to demanding industrial requirements. Titanium Grade 7 is particularly prized for its exceptional corrosion resistance in tough chemical environments. Thanks to advanced manufacturing techniques, rigorous quality control, and the flexibility to offer customized sizes and finishes, Mourad Metals meets the needs of global industries with reliable Titanium Grade 7 bars and rods designed for lasting performance and durability.
Titanium Grade 7 is a commercially pure titanium alloy that gets a boost in corrosion resistance from a small addition of palladium, usually between 0.12% and 0.25%. The rest of the alloy is primarily titanium, with carefully controlled amounts of iron, oxygen, carbon, nitrogen, and hydrogen. In terms of mechanical properties, it provides moderate tensile and yield strength, good ductility, and excellent toughness. This alloy stands out for its remarkable resistance to pitting, crevice corrosion, and reducing acids, all while maintaining good weldability and formability.
| Grade | ASTM B348 Ti Gr7 Flat Bar |
|---|---|

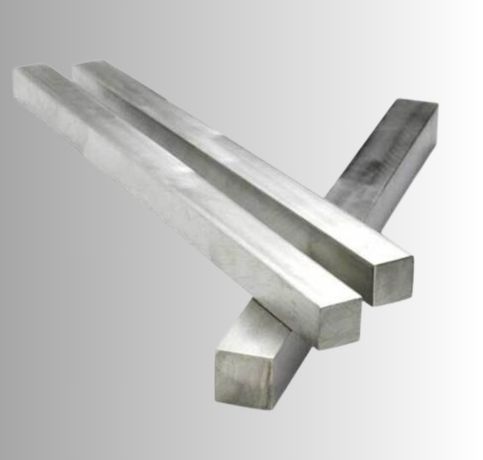

| Titanium Grade 7 Square bar size | 4 to 100mm |
| Titanium Alloy Grade 7 Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| CP Titanium Alloy Gr7 Hex Bar size | 2-100mm A/F |
| Titanium Grade 7 Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |

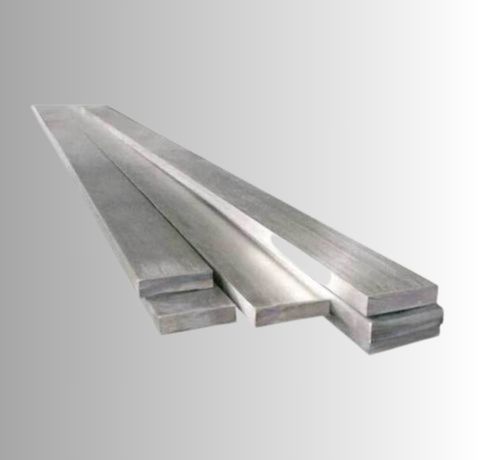

| Titanium Alloy Grade 7 Rectangles Size | 33 x 30mm to 295 x 1066mm |
| CP Titanium Alloy Gr7 Flat bar size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| Titanium Grade 7 Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| Titanium Alloy Grade 7 Section | 3.0 to 12.0mm thickness |

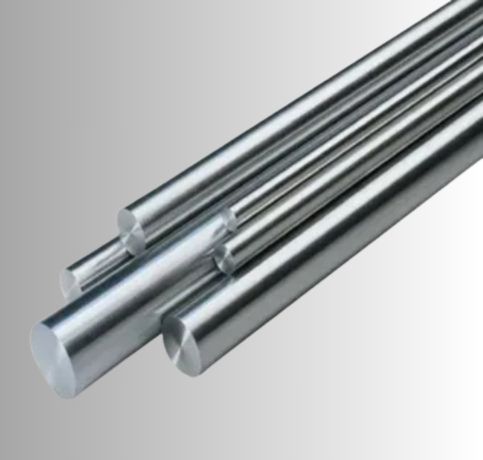

| CP Titanium Alloy Gr7 Round bar size | Diameter: 3-~800mm |
| Titanium Grade 7 Billet Size | 1/2″ to 495mm Diameter |
| Titanium Alloy Grade 7 Round Bar Standard Dimensions | Diameter / Height: |
| Titanium Grade 7 Surface | Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline |
| Titanium Alloy Grade 7 Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| CP Titanium Alloy Gr7 Technique | Titanium Grade 7 Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod |
| Titanium Grade 7 Condition | Hardened & tempered, annealed |
| Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |

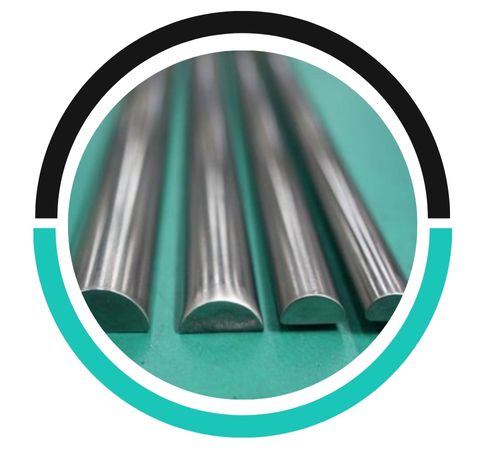

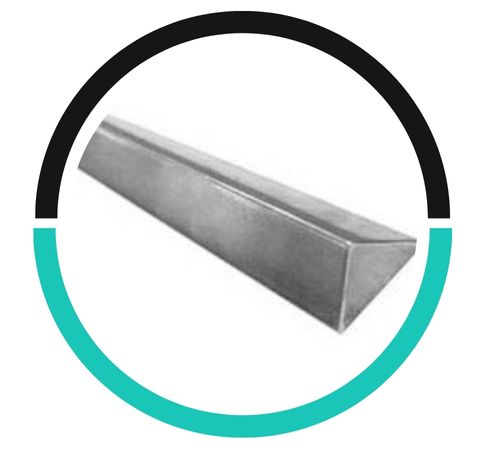

| Form | Titanium Grade 7 Round, Rod, T-Bar, Nickel Alloy Channel Bar, Precision Ground Bar, Nickel Alloy Flat Bar, Nickel Alloy Square Bar, Nickel Alloy Blocks, Nickel Alloy Round Rod, Nickel Alloy Rings, Nickel Alloy Hollow, Nickel Alloy Triangle, Rectangle, Hex (A/F), Nickel Alloy Threaded, Half Round Bar, Profiles, Nickel Alloy Billet, Nickel Alloy Ingot, I/H Bar, Forging etc. |
| Processing | Bar cutting to 650mm |
| Our Titanium Grade 7 Round bar conforms to NACE MR0175/ISO 15156 | |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr. 7 | 3.7235 | R52400 |
| Grade | C | Fe | N | Ti | H | O | Pd |
| Titanium Gr. 7 | 0.08 max | 0.30 max | 0.03 max | Balancen | 0.0150 max | 0.25 max | 0.20 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 0.163 lb/in3 | 1668 °C | Psi – 39900 , MPa – 275 | Psi – 59500 , MPa – 410 | 20 % |
| Density | Melting Range | Modulus of Elasticity (Tension) | Specific Heat | Mean Coefficient of Expansion | Thermal conductivity | Electrical Resistivity |
| kg/m3 | °C | GPa | J/kg. °C | x10 -6 / °C | W / m. °C | micro-ohm.m |
| 4,507 | 1668± 10 | 103 | 519 | 8.41 | 11.4 | 0.420 |
| Type | SIZES (mm) | SIZES (Inches) | ISO Tolerance |
|---|---|---|---|
| Cold Drawn and Ground | 10.00 – 75.00 | 5/6″ – 2.50″ | h8-h9-h10-h11 |
| Peeled and Polished | 40.00 – 150.00 | 1.50″ – 6.00″ | h11, h11-DIN 1013 |
| Peeled and Ground | 20.00 – 50.00 | 3/4″ – 2.00″ | h9-h10-h11 |
| Cold Drawn and Polish | 3.00 – 75.00 | 1/8″ – 3.00″ | h8-h9-h10-h11 |
Titanium Grade 7 Bars Standard lengths of 2000 mm up to 6000 mm. Cut to size on request (tolerance +2/-0 mm).
| 5.0 | 45.0 |
| 6.0 | 50.0 |
| 7.0 | 55.0 |
| 8.0 | 60.0 |
| 9.0 | 65.0 |
| 10.0 | 70.0 |
| 12.0 | 75.0 |
| 16.0 | 80.0 |
| 20.0 | 90.0 |
| 25.0 | 100.0 |
| 30.0 | 130.0 |
| 35.0 | 160.0 |
| 40.0 | 200.0 |
Yes, Titanium Grade 7 Bars and Rods can be recycled. Titanium is highly recyclable without significant degradation of its properties, making it an environmentally sustainable material for reuse in various applications.
Yes, we provide bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@mouradmetals.com
No, Titanium Grade 7 Bars and Rods do not attract magnets. Titanium, including Grade 7, is a non-ferromagnetic material, meaning it has little to no magnetic properties and is not attracted to magnets.
Titanium Grade 7 Bars and Rods find extensive use in the chemical processing industry for equipment that comes into contact with highly corrosive substances, including heat exchangers, reactors, piping, and storage vessels. They are also perfect for marine and offshore applications, desalination plants, and power generation systems due to their outstanding resistance to seawater and chloride environments. In the oil and gas industry, Grade 7 ensures a long service life and reliability, while its biocompatibility allows for limited medical and specialized industrial applications.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Mourad Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Tunis, Tunisia
